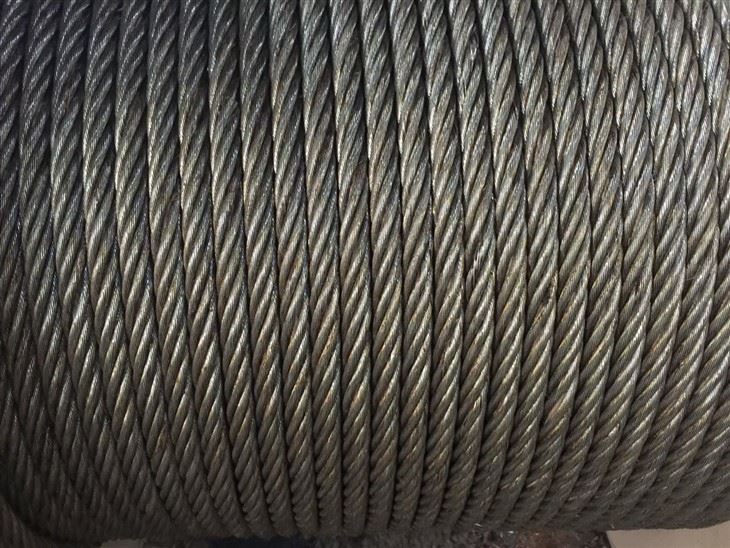

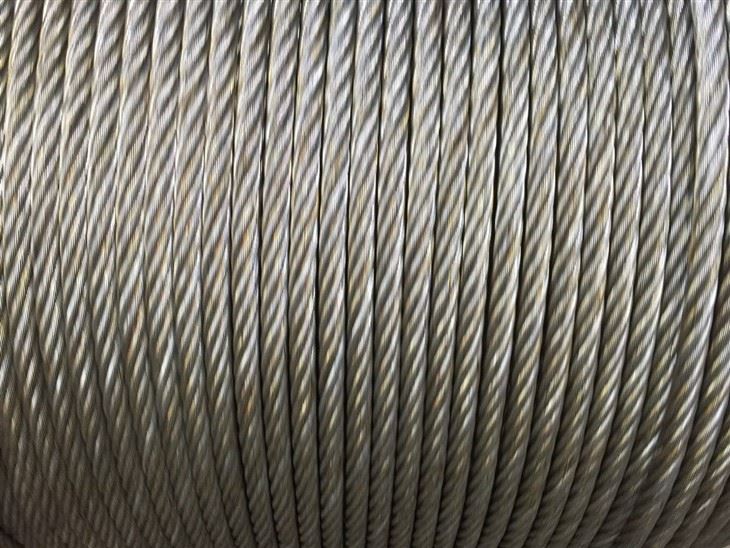

6X26sw+Iwrc, Line Contacted Steel Wire Rope (Galvanized & Ungalvanized)

Certification: ISO, CCC, CE Surface: Smooth Technique: Galvanized Application: Rope, Packaging, Netting, Manufacturing, Fencing, Construction Alloy or Not: Non-alloy Standard: BS, GB, DIN

  • Product Introduction

Tianjin Huayuan Times Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of 6x26sw+iwrc, line contacted steel wire rope (galvanized & ungalvanized) in China. If you're going to wholesale durable 6x26sw+iwrc, line contacted steel wire rope (galvanized & ungalvanized) made in China, welcome to get more information from our factory. Customized orders are welcome.



6X26SW+IWRC Line Contacted Steel Wire Rope (Galvanized & Ungalvanized)


Product Information:

FEATURES:
1) The wire rope can transmit long-distance load.

2) The bearing safety factor is large, and the use is safe and reliable.

3) Light weight, easy to carry and transport.

4) Able to withstand various loads and variable loads.

5) It has high tensile strength, fatigue strength and impact toughness.

6) Under high-speed working conditions, it is abrasion-resistant, shock-resistant and stable in operation.

7) Good corrosion resistance, able to work normally in the harsh environment of various harmful media.

8) Good softness, suitable for traction, pulling, strapping and other purposes.


TECHNICAL PARAMETER:

Material Carbon Steel
Diameter Range 8mm to 80mm
Lay Right interaction twist, Left interaction twist, Right direction twist, Left direction twist
Tensile Strength 1570/1670/ 1770/ 1870/1960KN
Surface Treatment Ungalvanized, Electro Galvanized, Hot Dip Galvanized, PVC Coated



Nom. Diam. (mm)

Nominal Tensile Strength of Rope



Approx. weight
1570 1670 1770 1870 1960


kg/100m


KN KN KN KN KN
FC IWRC FC IWRC FC IWRC FC IWRC FC IWRC
 8 33.2 35.8 35.3 38.0 37.4 40.3 39.5 42.6 41.4 44.7 24.3 26.8
9 42.0 45.3 44.6 48.2 47.3 51.0 50.0 53.9 52.9 56.5 30.8 33.9
 10 51.8 55.9 55.1 59.5 58.4 63.0 61.7 66.6 64.7 69.8 38.0 41.8
11 62.7 67.6 66.7 71.9 70.7 76.2 74.7 80.6 78.2 84.4 46.0 50.6
12 74.6 80.5 79.4 85.6 84.1 90.7 88.9 95.9 93.1 100 54.7 60.2
13 87.6 94.5 93.1 100 98.7 106 104 113 109 118 64.2 70.6
14 102 110 108 117 114 124 121 130 127 137 74.5 81.9
16 133 143 141 152 150 161 158 170 166 179 97.3 107
18 168 181 179 193 189 204 200 216 210 226 123 135
20 207 224 220 238 234 252 247 266 259 279 152 167
22 251 271 267 288 283 305 299 322 313 338 184 202
24 298 322 317 342 336 363 355 383 373 402 219 241
26 350 378 373 402 395 426 417 450 437 472 257 283
28 406 438 432 466 458 494 484 522 507 547 298 328
30 466 503 496 535 526 567 555 599 582 628 342 376
32 531 572 564 609 598 645 632 682 662 715 389 428
34 599 646 637 687 675 728 713 770 748 807 439 483
36 671 724 714 770 757 817 800 863 838 904 492 542
38 748 807 796 858 843 910 891 961 934 1010 549 604
40 829 894 882 951 935 1010 1090 1170 1140 1230 670 737
42 914 986 972 1050 1030 1110 1090 1170 1140 1230 670 737
44 1000 1080 1070 1150 1130 1220 1190 1290 1250 1350 736 809
46 1100 1180 1170 1260 1240 1330 1310 1410 1370 1480 804 884
 48 1190 1290 1270 1370 1350 1450 1420 1530 1490 1610 876 963
50 1300 1400 1380 1490 1460 1580 1540 1660 1620 1740 950 1050
52 1400 1510 1490 1610 1580 1700 1670 1800 1750 1890 1030 1130
54 1510 1630 1610 1730 1700 1840 1800 1940 1890 2030 1110 1220
56 1620 1750 1730 1860 1830 1980 1940 2090 2030 2190 1190 1310
58 1740 1880 1850 2000 1960 2120 2080 2240 2180 2350 1280 1410
60 1870 2010 1980 2140 2100 2270 2220 2400 2330 2510 1370 1500
62 1990 2150 2120 2290 2250 2420 2370 2560 2490 2680 1460 1610
64 2120 2290 2260 2440 2390 2580 2530 2730 2650 2860 1560 1710
66 2260 2430 2400 2590 2540 2740 2690 2900 2820 3040 1660 1820
68 2400 2580 2550 2750 2700 2910 2850 3080 2990 3230 1760 1930
70 2540 2740 2700 2910 2860 3090 3020 3260 3170 3420 1860 2050
72 2690 2900 2860 3080 3030 3270 3200 3450 3350 3620 1970 2170
74 2840 3060 3020 3260 3200 3450 3380 3650 3540 3820 2080 2290
76 2990 3230 3180 3430 3370 3640 3560 3850 3730 4030 2190 2410
78 3150 3400 3350 3620 3550 3830 3750 4050 3930 4240 2310 2540
80 3320 3580 3530 3800 3740 4030 3950  4260 4140 4460 2430 2680
